Specifications:

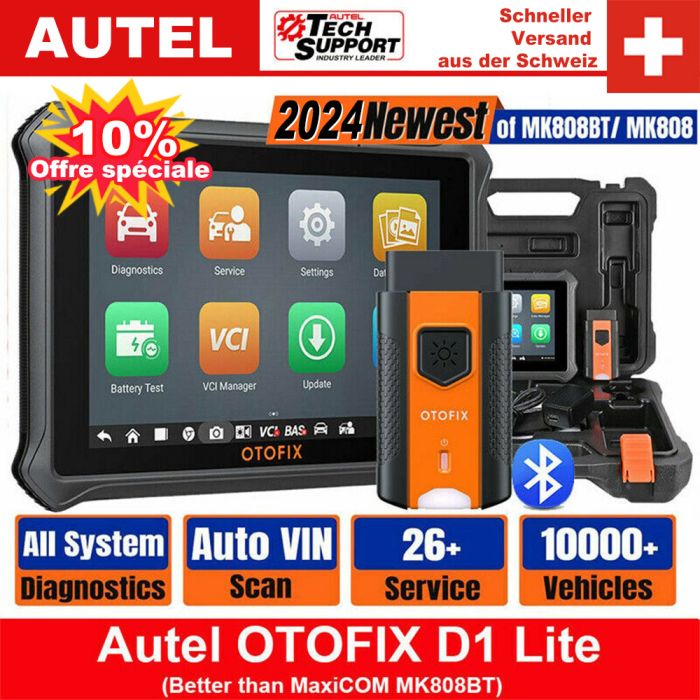

Name: Autel OTOFIX D1 Lite
Function like: MK808, MK808BT
Processor: 4x ARM Cortex-A35 (1.5 GHz)
OS: Android 9.0
Memory: 64GB
DDR: 2GB
Display: 7 inch LCD capacitive touch screen with 1280*800 resolution
Battery: 5800mAh
Camera: 8M Connectivity: USB OTG Type C / USB HOST Type C
Bluetooth
...
Autel OTOFIX D1 lite, with powerhouse speed and performance, offers wealth of diagnostic features and functions, including OE-level diagnostics, key coding, special services and more. Booting up in seconds and sporting a large 7-inch display, this diagnostic tool gives you a quick way to get you right down to business.
Full system diagnostics
Autel D1 Lite can access ALL vehicle systems and subsystems, such as body, chassis, powertrain, networkand etc., to perform a comprehensive scan on ECUs to locate fault systems and retrieve DTCs.
1. To diagnose Brake Systemif you feel the brake pedal is muddy and notice unusual smell or noise, etc. A properly service brake system is critical to ensure safe vehicle control and operation;
2. To diagnose Emission Systemif the system is affected by vehicle age or poor quality fuel. A good emission system reduces noxious gases to a large degree and protects them from fines;
3. To diagnoseFuel systemif vehicle won't start or “Check Engine” light is illuminated. Checking the car's fuel system regularly ensures the best performance from your car with the lowest emissions;
4. To diagnose Transmissionif your car is skidding or difficult to shift. The system plays an important part in the overall performance of your car;
5. To diagnose Wiper System if you observe rattling or streaking wipers. If the car is not checked regularly, the accident could happen because you can't see clearly;
6. Go to diagnoseLight Systemif you see rapid signal flashing or dimming lights.
And many more...
26 service functions for reset execution
The diagnostic scanner is a professional tool aiming to provide mechanics and DIY enthusiasts with access to the systems for various maintenance and services.
1. Oil Service Reset - Performs a reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on vehicle driving conditions and climate, and turns off the warning light;
2.TPMS Service - Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;
3.EPB Service- Initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4.ABS/SRS Services - Conducts various bi-directional tests to verify the operating conditions of both the Anti-lock Braking System and the Restraint System;
5.SAS Service - Performs steering angle adjustment, clears steering sensor fault memory and turns on steering wheel warning light;
6.DPF Regeneration Service - Clears particles from the DPF filter to stabilize the filter performance.
7.BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
8. Brake Bleed - If your brake pedal becomes soft and uncomfortable to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Brake System;
9.IMMO Service-Clear the lost car key's information and program the new key in the ECU database to protect user's car from being stolen;
10. Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;
11. SAS Service - to perform calibration for the Steering Angle Sensor and clear steering sensor error memory;
12. Throttle Adjustment - initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
13. headlight
14.Suspension
15.Long change
16. odometer
17. sit
18.CHG tire size
19.TEC learning
20.WIN DR ROOF
There are many more features waiting for you to explore.
Diagnostics of complete systems
The D1 Lite carries complete capabilities for all systems, not only includes 4 systems diagnostics but all the other systems including body, chassis, powertrain, communications and more. You can get all the features to fix your repair work more quickly with D1 Lite.
1. Read hard codes on different systems.
You are able to know the meaning of trouble codes and figure out what's wrong with your systems.
Erasing various DTCs easily after the problem has been resolved. Do remember that the check engine light will turn off when you clear the codes.
2. Retrieve live data to make sure all systems are running normally.
The parameter items can be displayed in various forms, such as text, waveform graph, digital and more.
3. Active test is to test output elements.
You can find out if a specific subsystem or component in your car is working well or not by using this tool to make the tester outputs function instead of checking in ignition status.
Various choice for diagnoses
D1 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.
When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapter to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool supports different types of adapter connection.
An Android based tablet diagnostic tool
The D1 Lite is an Android-based tablet diagnostic tool and has several features and functions in addition to the diagnostic and service functions, such as the MaxiFix, Shop Manager, Remote Desk, etc. All these functions are equipped to provide you with a fun and user experience They offer ways to do good data management and quick problem-solving.
1. Cloud-based MaxiFix online community - an online troubleshooter database that provides you with all common DTCs database for most vehicles and allows you to network with other users.
2. Instant remote control - works with TeamViewer Quick Support to enable you to receive ad hoc remote support from autel support center, colleagues, or friends, by bringing your tablet diagnostic tool to your PC.
3. Shop Manager - an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
4. Data Manager - store, print, and review the saved files.
5. Interactive Data Logging - enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
6. One-Stop Multitasking - Designed for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized
Remote Assistance/ MaxiFix/Data Manager/Quick Link
The Remote Deskapplication launches the TeamViewer Quick Support program, a simple, fast, and secure remote control interface. Use this application to receive ad hoc remote support from Autel support technicians by allowing them to control your MaxiPRO tablet on your PC via the TeamViewer software.
The MaxiFixapplication launches the on-line troubleshooter database, which not only provides you with virtually every common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCheck users, and gives you access to them a big
Database of repair and diagnostic tips submitted along with proven fixes.
Extensive vehicle coverage
More than 80 brands, USA/Europe/Asiavehicles.
AU Ford, Holden, Buick, Cadillac, Chevrolet, Chevrolet MPV, Chevrolet Truck, Chrysler, Ford, Geo, GM, Hummer, Hyundai, Kia, Pontiac, Satum, Scion, Hustle r, Acura, Daihatsu, Honda, Infiniti, Isuzu, Lexus ,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota,Daewoo,Abarth,Alfa Romeo,Audi,Bentley,Benz,BMW,bugatti,Citroen,CnFiat,Fiat,Jaguar,Lancia,Lamborghini,Landrover,LT3,Maybach,mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, SAAB, Seat, Skoda, smart, Sprinter, Vauxhall, Volvo, VW...
language support
German, French, English, Italian, Spanish, Japanese, Portuguese, Dutch, Korean, Russian, Polish, Swedish for optional
Supports automotive protocols
ISO9141-2, ISO14230-2,ISO15765, K/L Line, Blinking Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(High Speed, Middle Speed, Low Speed and Singlewire CAN, Fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
packing list
1X Main Unit
1X power adapter
1X OTOFIX V1
1X USB to Ethernet Adapter
1X carry bag
1X Type-C USB Cable
1X Quick Reference Guide
