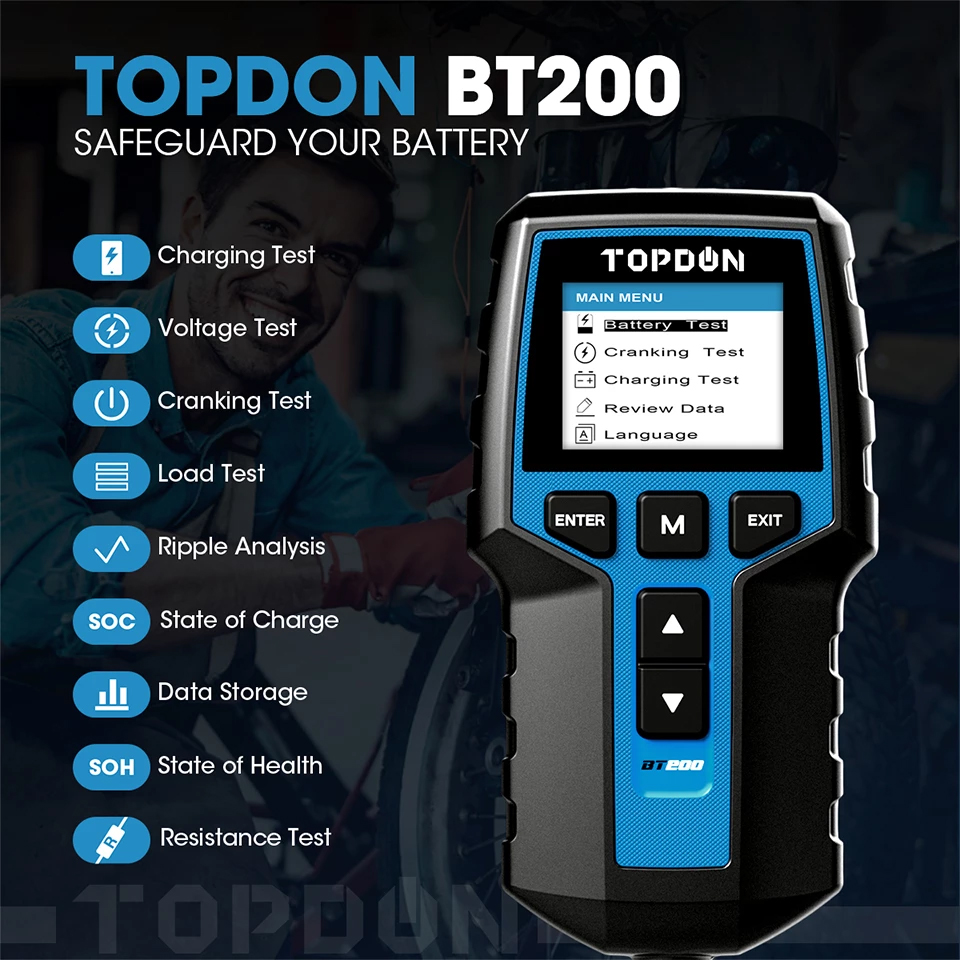

Adopting the most advanced conductivity test technology, reverse polarity protection, etc., TOPDON BT200 serves as a 12V to 24V battery tester to provide technicians with important information about the condition of the battery to find battery and charging problems quickly, easily and accurately.
2 pieces in stock!
Order by 5:30 p.m., delivered tomorrow or come pick up right away in CHUR! Absolutely great device!
Adopting the most advanced conductivity test technology, reverse polarity protection, etc., TOPDON BT200 serves as a 12V to 24V battery tester to provide technicians with important information about the condition of the battery to find battery and charging problems quickly, easily and accurately.
Specifications:

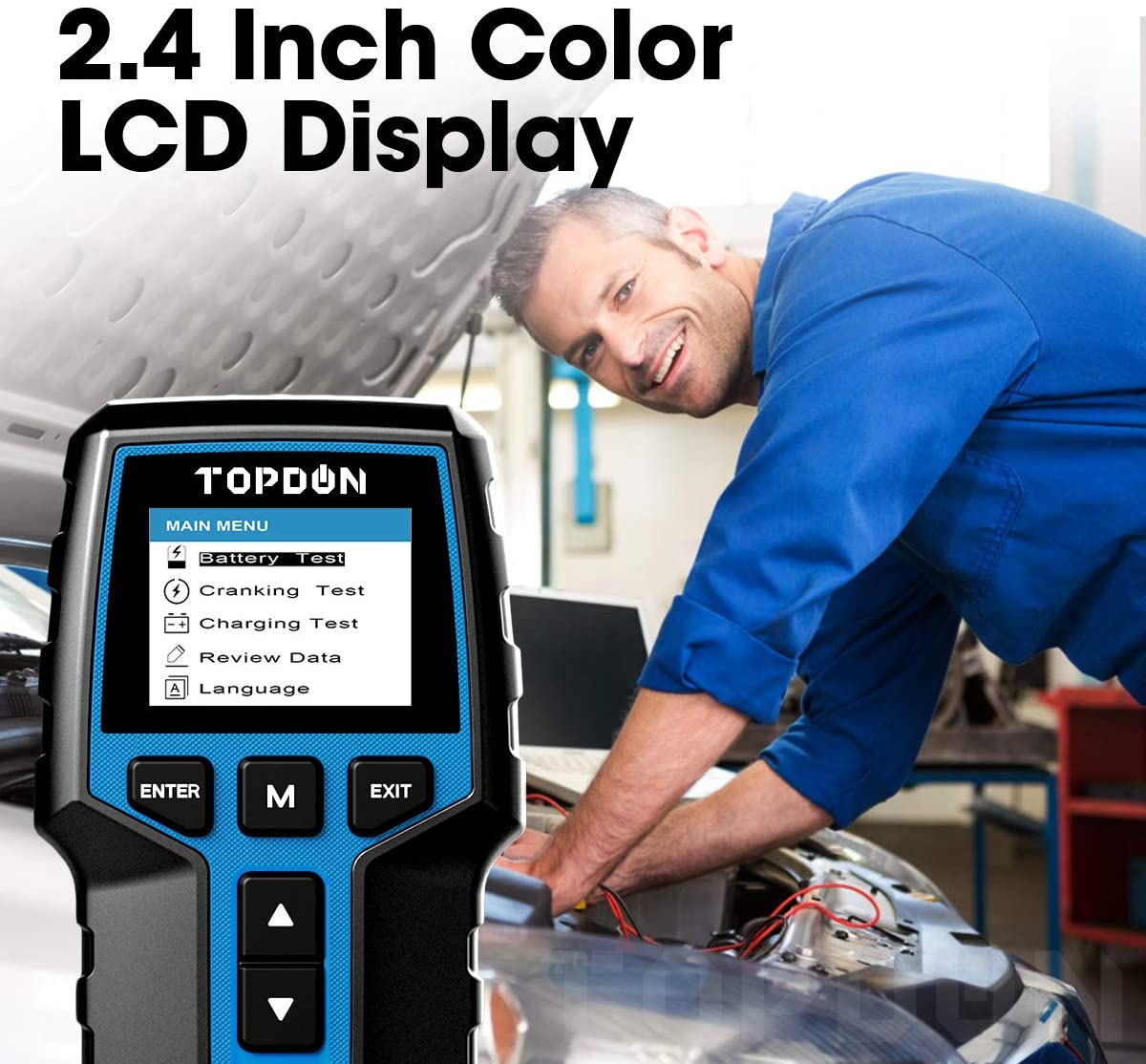

Display.24" LCD
Screen resolution: 320-240 pixels
Cable reach: 0.920 mm (36.22 inch)
Storage Temperature: -20*C~70*C (-4~158*F)
Working Temperature -20C~60'C (-4~140F)
Dimensions (L wH): 178-94.533 mm (7 x 3.72 + 1.3 inches)
Weight: 440g (097lb)
LANGUAGE:
Spanish, Japanese, Italian, German, French, Portuguese, Polish
Compatibility:
Please note that the battery type and CCA (Cold Cranking Amp) ratings are indicated on the battery sticker. Please note them before use.

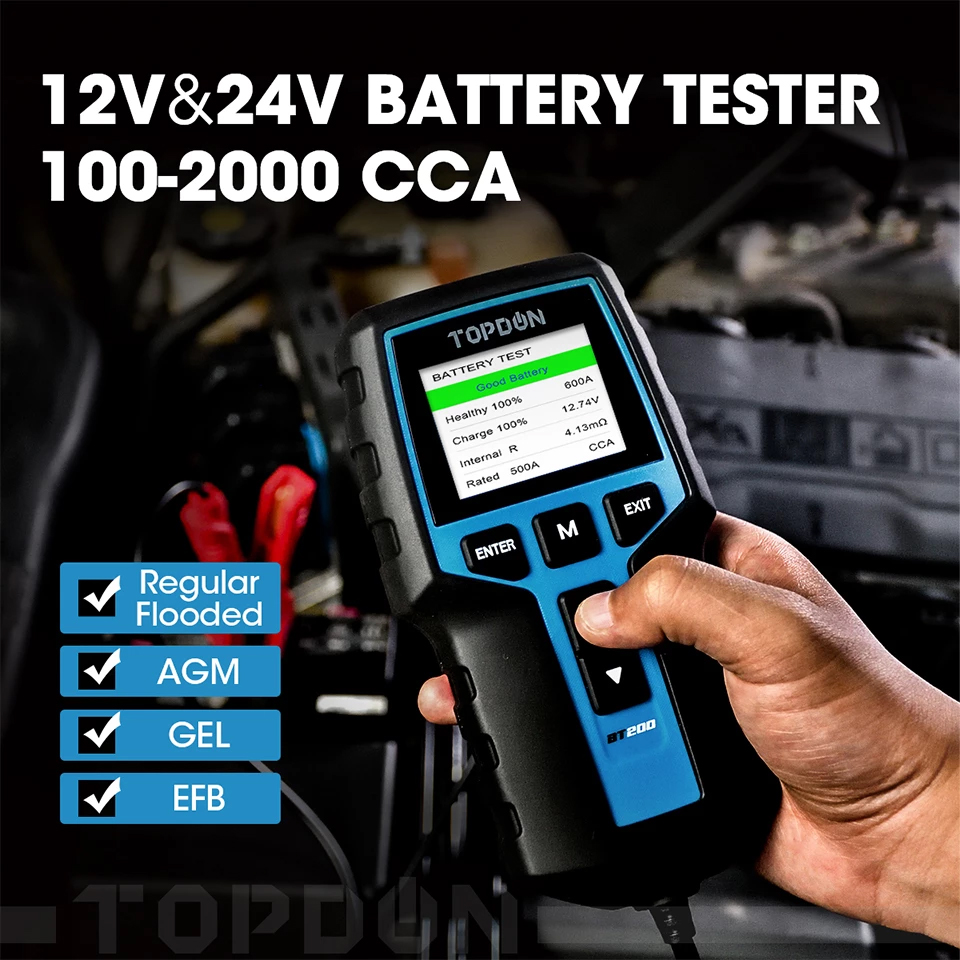

BT200 supports the following types.
1.VRLA/GEL/AGM/EFB
2. regularly flooded
load test
Before the test:
The engine must be on during the test to get results. Make sure all electrical accessories and devices are turned off.
* Turning on and off electrical accessories in the vehicle during the test will affect the accuracy of the test result.

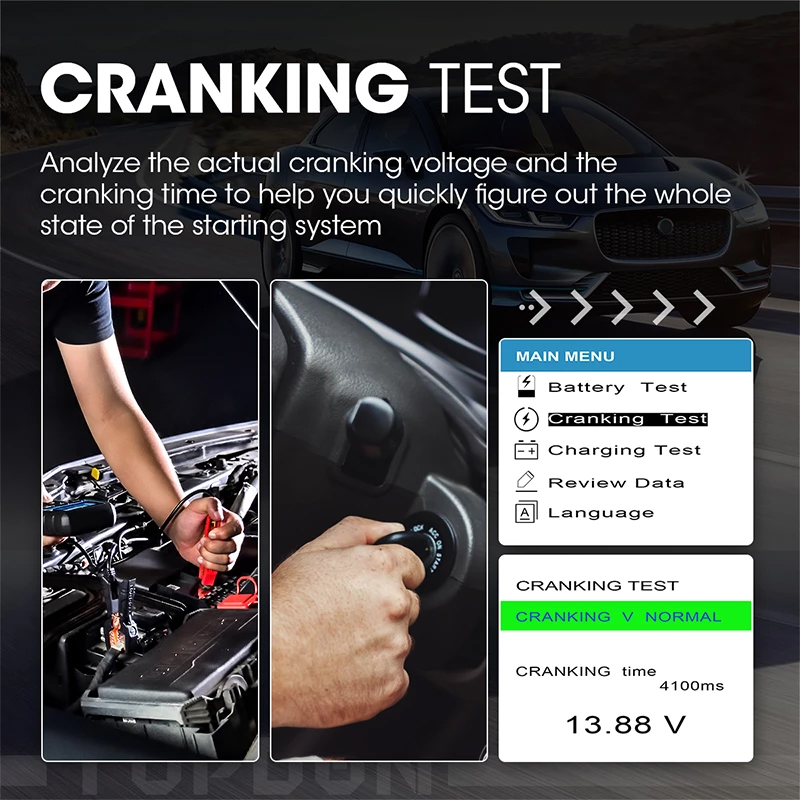

starting test
Before the test:
The engine and all other accessories must be off during the test to get accurate results.
Battery test:
TOPDON BT200 tests each battery according to the selected actual system standard and the rating marked on the battery to get the accurate results.
Before the test:
The engine and all other auxiliary loads must be off during the test to get accurate results. Turn on the vehicle headlights for 2 to 3 minutes until the battery voltage returns to normal when the battery is just fully charged.

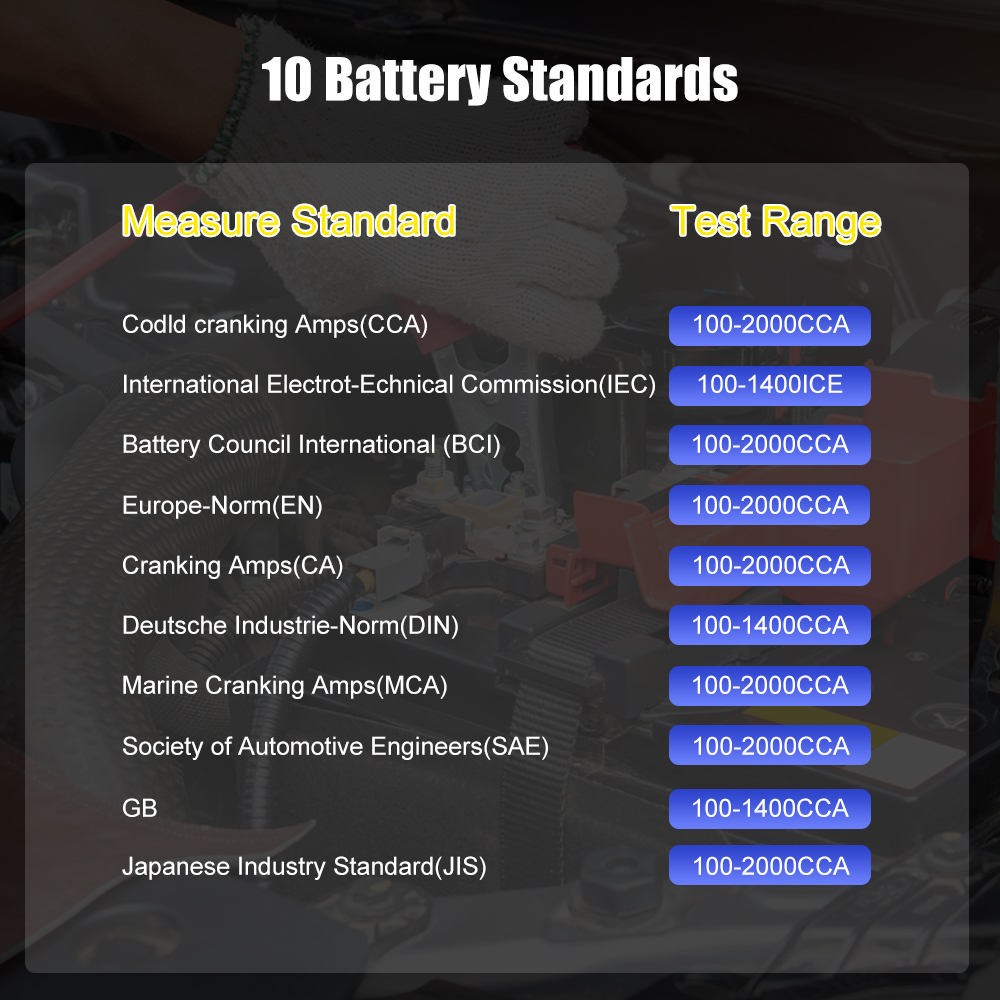

Battery system standard description and measurement range
-The battery tester analyzer wiltesteach battry according to the chosen system and rating
-The battery tester can test on batteries with a nominal capacity of 100-2000CA/30Ah-220AH.
PACKAGE LIST:
1.TOPDON battery tester BT200
2.User Manual
